The Dot- Cardinal

$5,200.00

  • The Dot- Cardinal
  • The Dot- Cardinal
  • The Dot- Cardinal
  • The Dot- Cardinal
  • The Dot- Cardinal
  • The Dot- Cardinal
  • The Dot- Cardinal
  • The Dot- Cardinal
  • The Dot- Cardinal
  • The Dot- Cardinal
  • The Dot- Cardinal
  • The Dot- Cardinal
  • The Dot- Cardinal

This variant is currently sold out

Please fill in the form below if you'd like to be notified when it becomes available.

  • Description
  • Technical Details
  • A modern, yet elegantly designed manual wind watch with a 37mm sized case. Not just a watch, but a testament to what a solo horologist can produce after several years of study, exploration and determination.

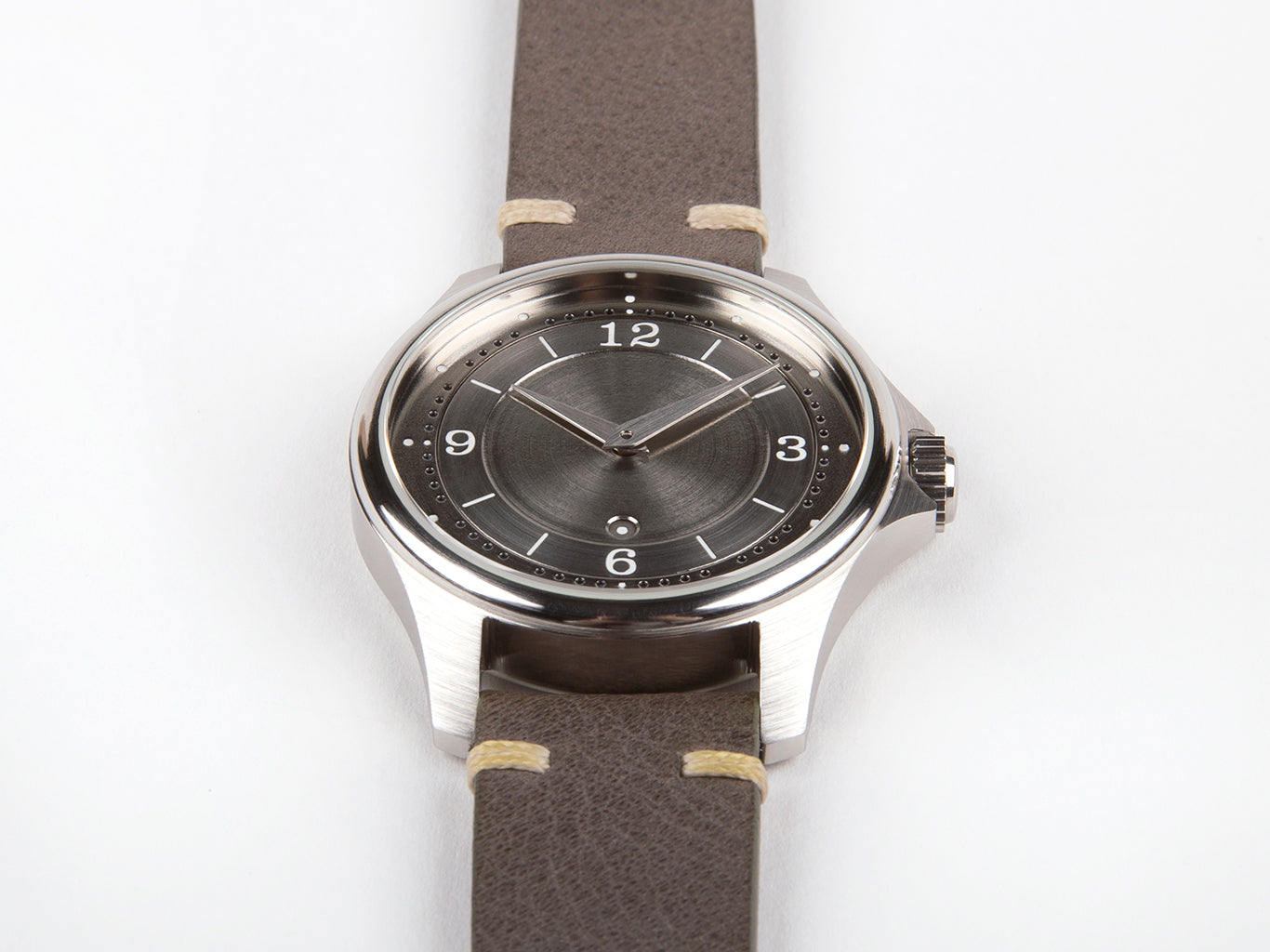

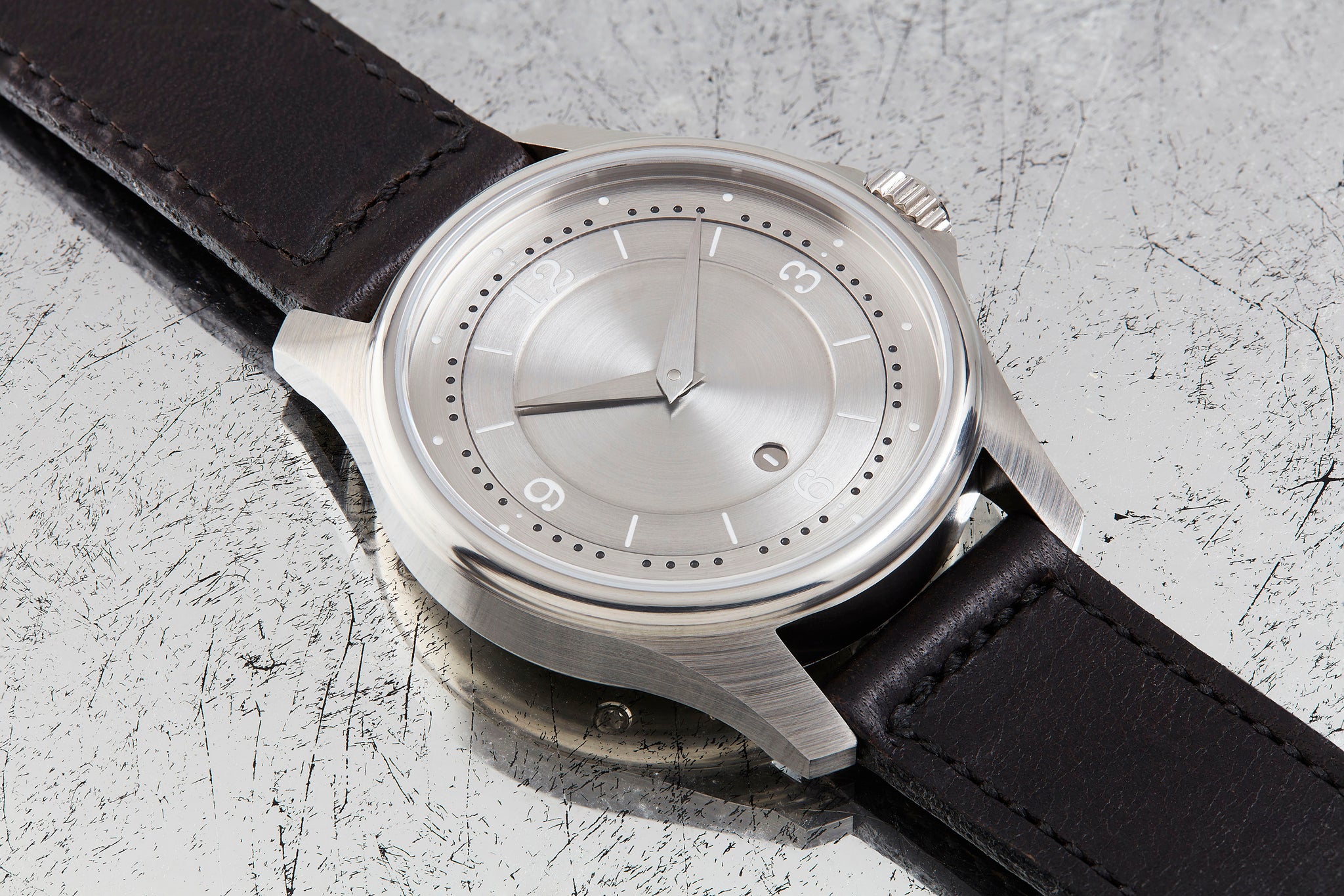

    The Dot Cardinal watches feature a steel dial with recessed numerals and sectors, each individually filled with an enamel paint in a variety of colors.

    All watches in the Dot Collection feature a running indicator above 6. I created this feature to show my interpretation of running seconds and to add a touch of life to the face of the watch as the indicator subtly rotates between a sector and dot every ten seconds. A video of this feature can be seen here

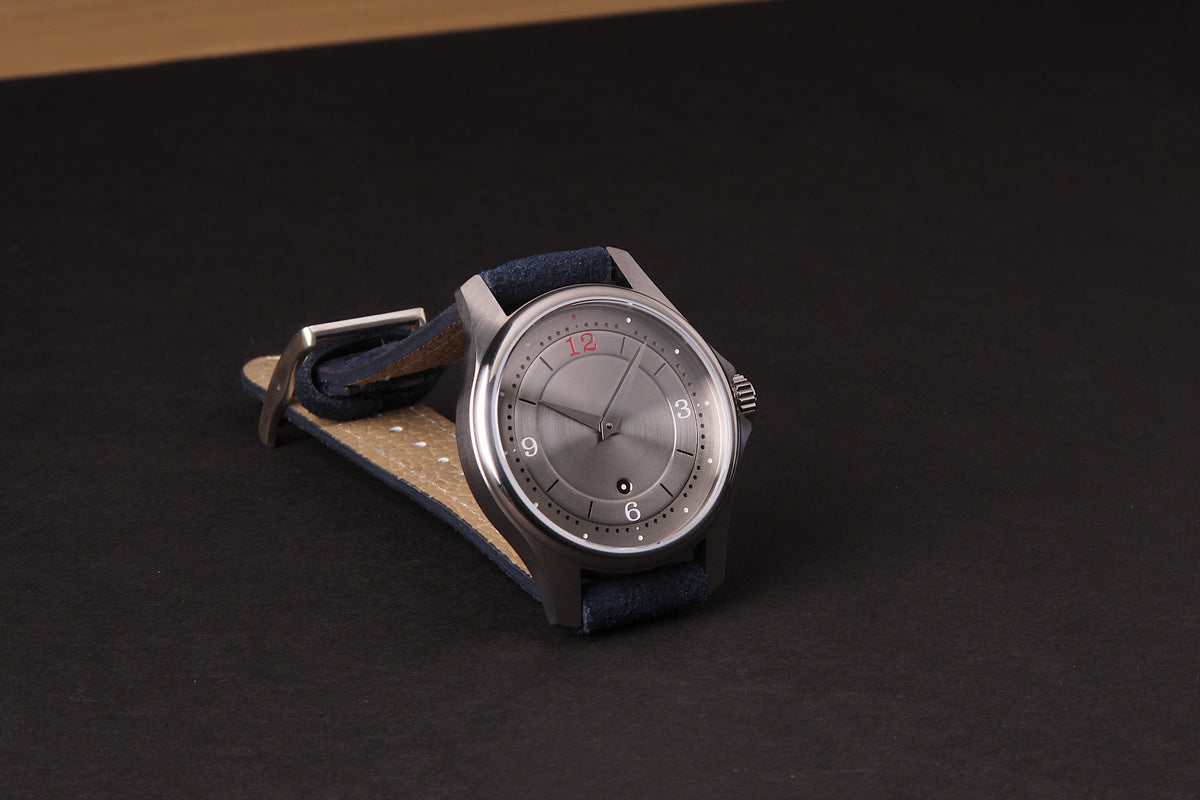

    The Dot Collection's watches are all made to order order in a series of 100 individually numbered watches (Limited to 50 in steel and 50 in titanium). Since each watch is made to order, custom colored numerals, dots and sectors can be accommodated within this series.

    Due to the limited number produced per year and the fact that each piece is made to order, there is wait time between ordering and delivery.



  • Size:

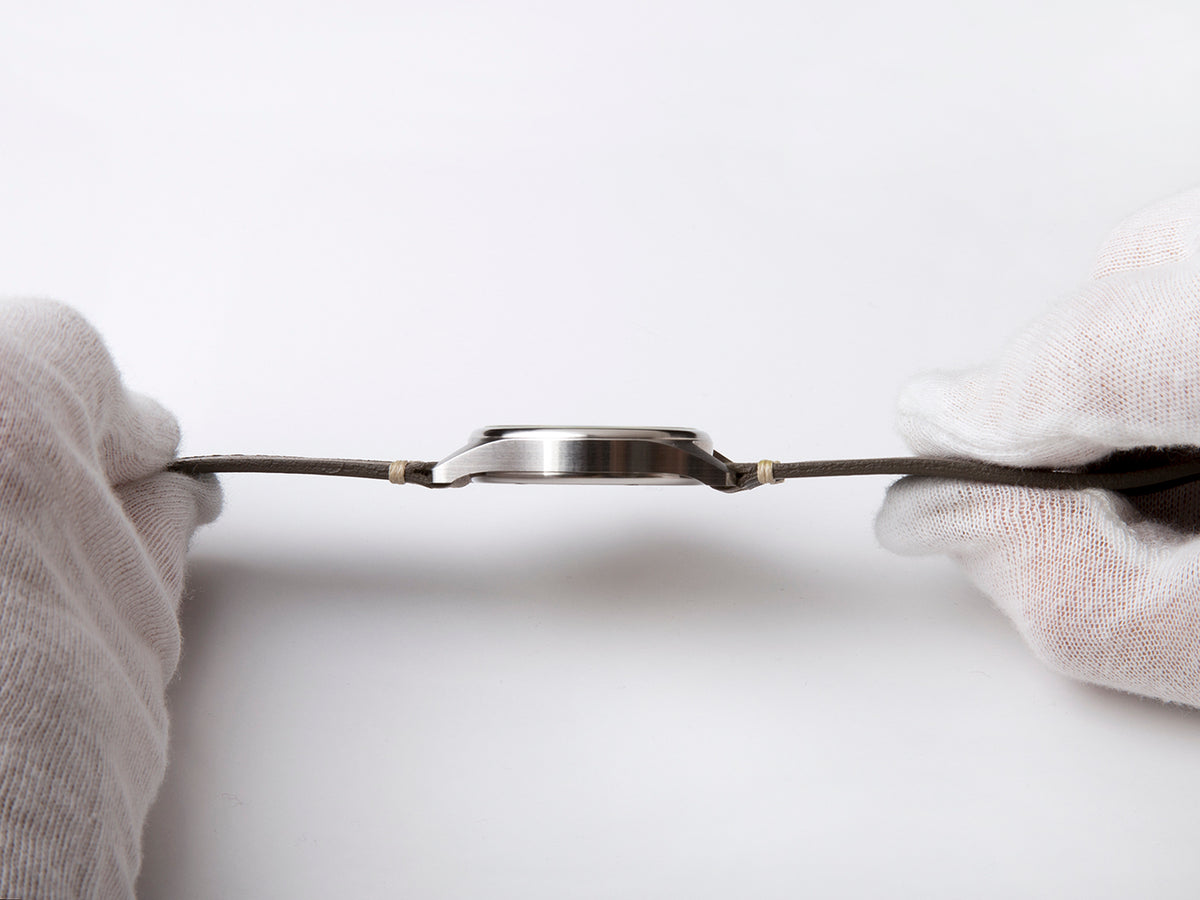

    37 mm diameter (not including crown), 47mm lug to lug distance, 9 mm thick from the case back to crystal with a 18 mm strap size.

    Movement:

    New Old Stock Doxa 100 Caliber-  Swiss made movement by ETA
    Manual Winding with 40 Hour Power Reserve at full wind.
    Fully rebuilt and serviced to before assembly.

    Materials:
    Solid 316 L Stainless Steel or 6Al 4V Titanium Case.
    Dial and Hands from Stainless Steel.
    Running indicator disc made from Titanium with anodized or painted indices and sectors.
    Crystal- Uncoated Sapphire


    Water Resistance:
    Watches are pressure tested prior to shipment at 10ATM.

    Manufacturing and Finishing:

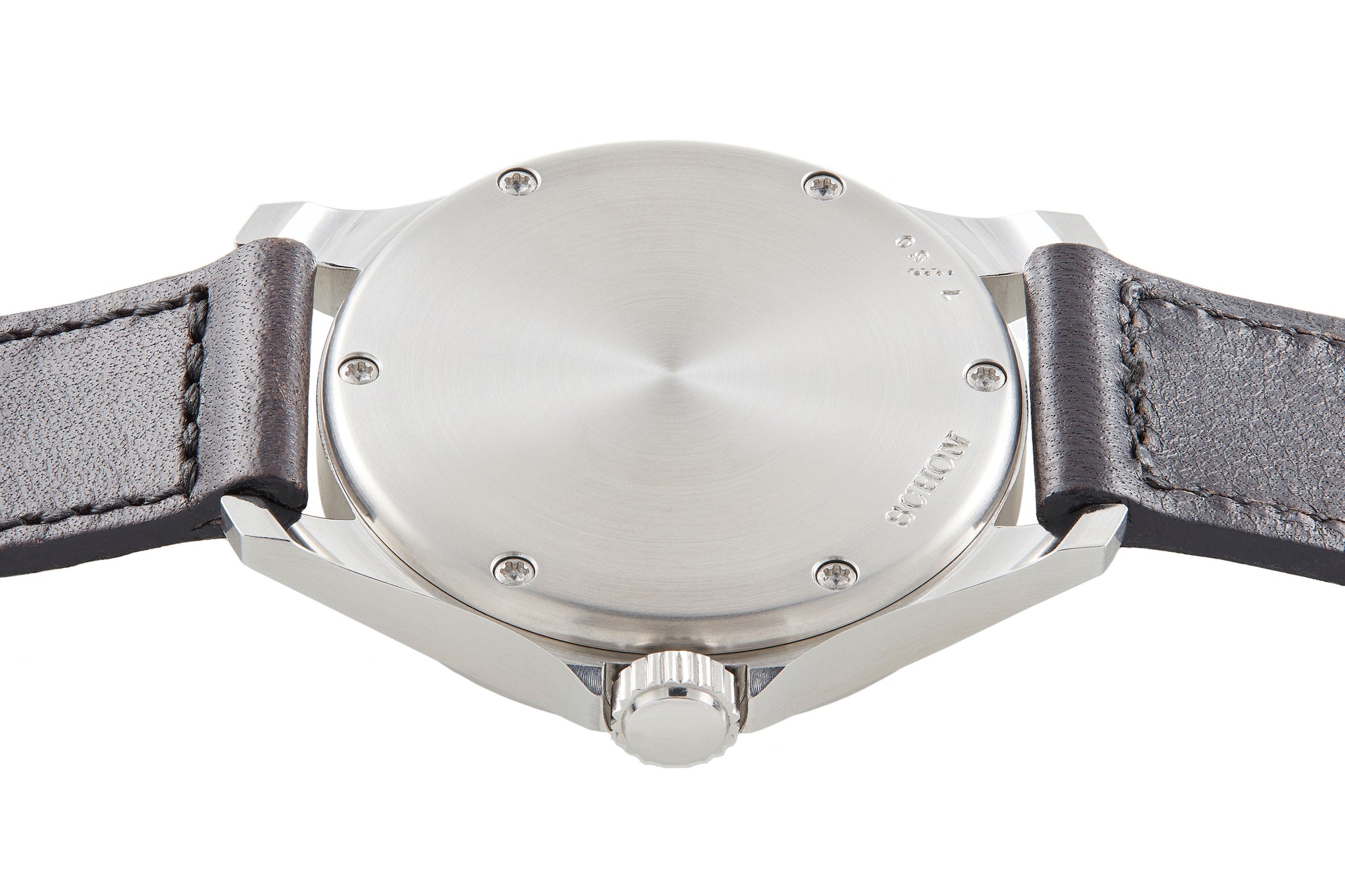

    Case, case back, hands, dial and movement ring are manufactured in America either by Ian or a local partner, using documentation and designs created for this watch. Learn more about this in the process section.

    Weight:
    2.2 oz for steel. 1.5 oz for Titanium case. (both measurements with leather strap)

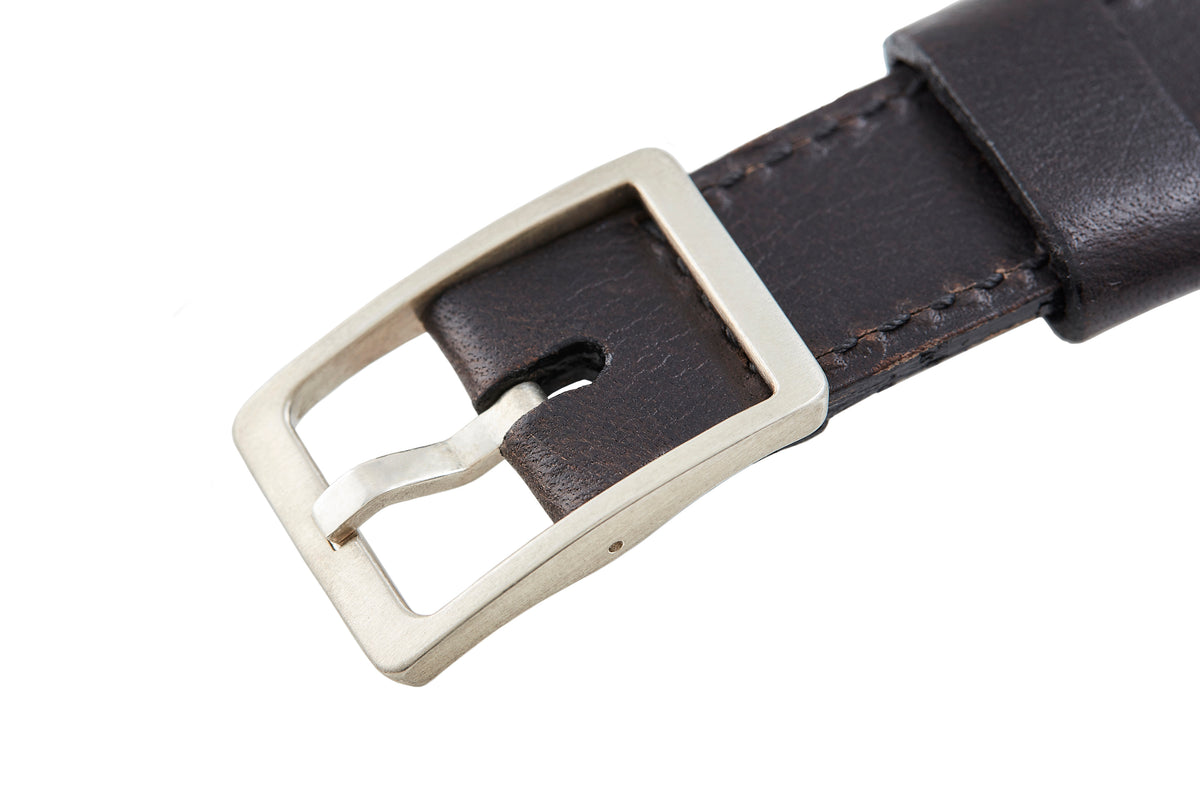

    Straps:
     A wide variety of straps in leather and synthetic materials are available. The watch comes stock with a USA made leather strap.
